The QT(Quick Turn) table is Brother’s original turn table type high-speed 2-face pallet changer. High-speed pallet change is enabled by avoiding lift-up operation while achieving high reliability through a sealed structure.

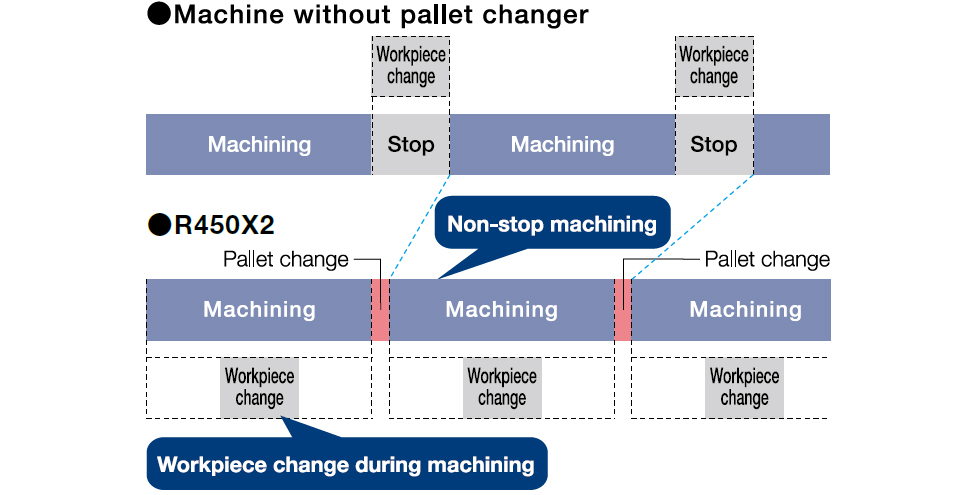

Workpieces on one pallet can be changed while machining workpieces on the other pallet. Therefore, waste in workpiece change time is eliminated, enabling nonstop machining.
|Pallet change time|
The jig can be mounted on the table even if it extends over the table as long as it is within the turning diameter. The standard jig area is wide, with a 1,020mm turning diameter and 300mm jig height, making mounting the index table jig easier. The jig area can be enlarged optionally so that larger jigs can be mounted.

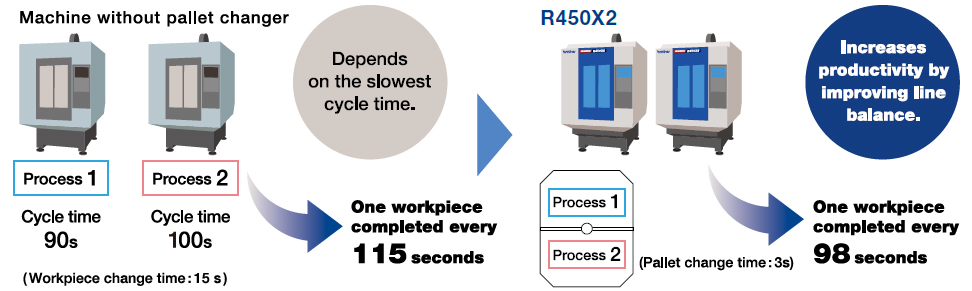

Processes divided between two machines can be performed on one machine, making use of the 2-face pallet changer. Process integration improves the line balance and enables optimal equipment investment.

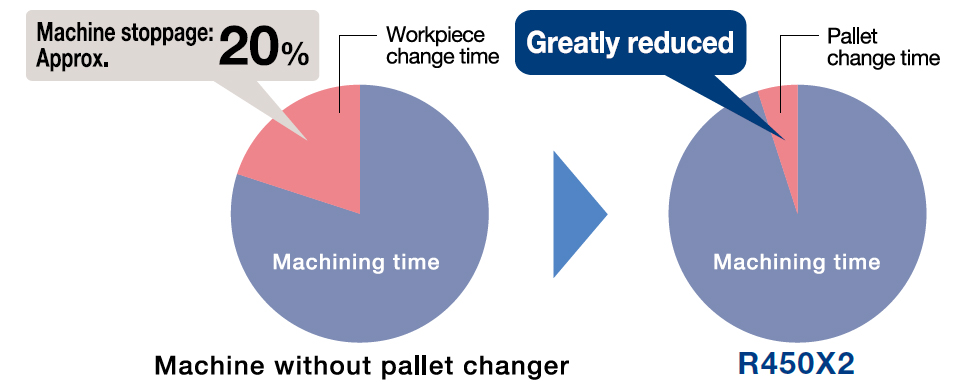

When machining time is short, the percentage of workpiece change time increases. Therefore, productivity lowers when machines are not equipped with a pallet changer. The R450X1 eliminates waste in workpiece change time to provide high productivity.
Machining time ratio
E.g.) Machining time: 60s, workpiece change time: 15s

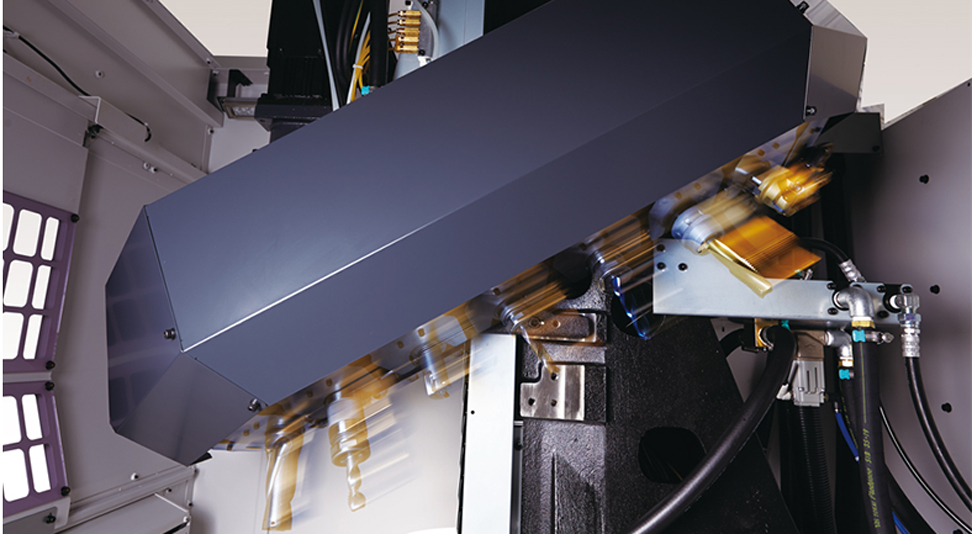

In addition to the conventional 14-tool magazine specications, the new 22-tool magazine specications have been added. Using both the 22-tool magazine and 2-face pallet changer promotes process integration, contributing to improvement of production efciency.
|Tool storage capacity 22tools|
Tool - Tool: 0.9S
Chip - Chip: 1.7S
The machine is equipped with a simultaneous operation function where the XY and additional axes are positioned and tools are changed simultaneously when the QT table turns. This does not waste any pallet change time, enabling non-stop machining in our quest for "Wasted time = Zero".

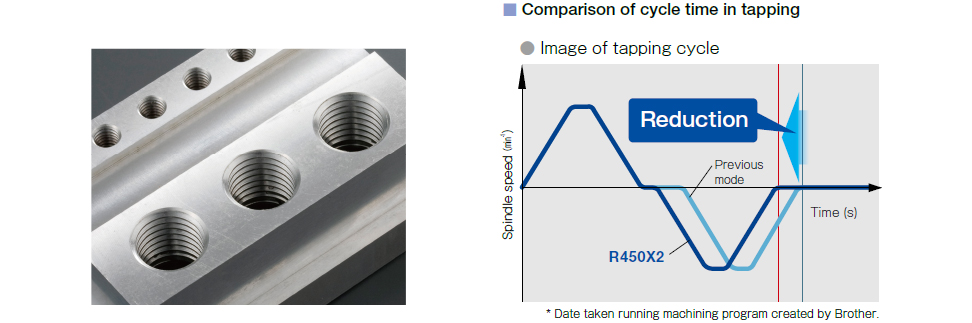

Delay in response has been reduced to almost "zero" by increasing the responsiveness of the servo motor. For example, synchronized tapping, the fastest in the world, is completed within much shorter time.
