Go back to Machine Tools Top pageS700X2 / S500X2 / S300X2
SPEEDIO
The SPEEDIO maximizes productive efficiency improvement of mass-production parts such as automobile, motorcycle and information technology.
Recommended machining
High Productivity
Achievement of high acceleration and high responsiveness through machine/controller integrated development and complete elimination of wasted operation and wasted time enable the machine to fully demonstrate its abilities, resulting in high productivity.

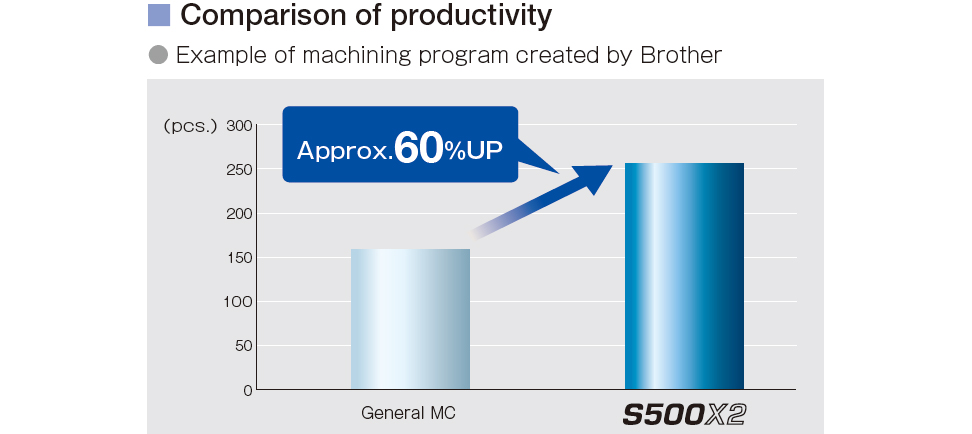

Pursuit of high productivity
Shorter cycle time has been achieved by the fastest Z-axis acceleration in its class and the low-inertia spindle servomotor. (Except 27,000 min-1 specification models).
| Z-axis acceleration |
|---|
|
| Improved productivity: 3% or more (compared to previous model). |
- * Varies depending on machining programs or machining conditions.

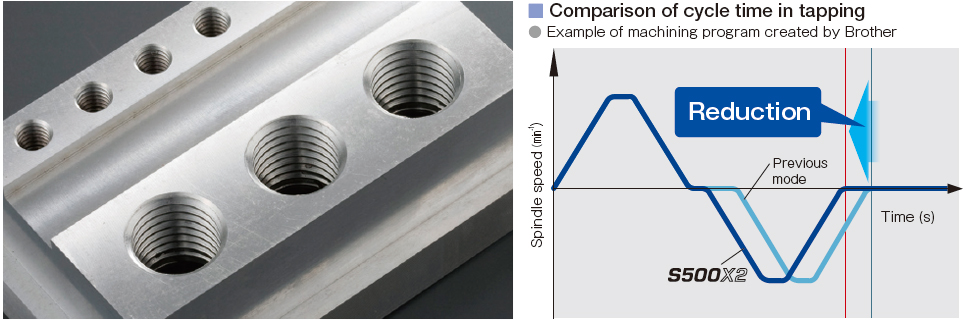

Highly-responsive servomotor
High-speed synchronized tapping at the fastest level in the world has been tuned further. Tapping can be completed in shorter time at high accuracy.
Nonstop ATC
Tool change time has been minimized by the increased Z-axis speed, in addition to the short spindle start/stop time.
|
|
Simultaneous operation control
Reduction in non-cutting time has been achieved by simultaneously performing tool change and positioning X/Y and additional axes.
High Machining Capabilities
Improved machine rigidity, diverse spindle motors, and high performance and a highly functional NC controller ensure a broad range of machining, from high-speed machining to heavy-duty machining.

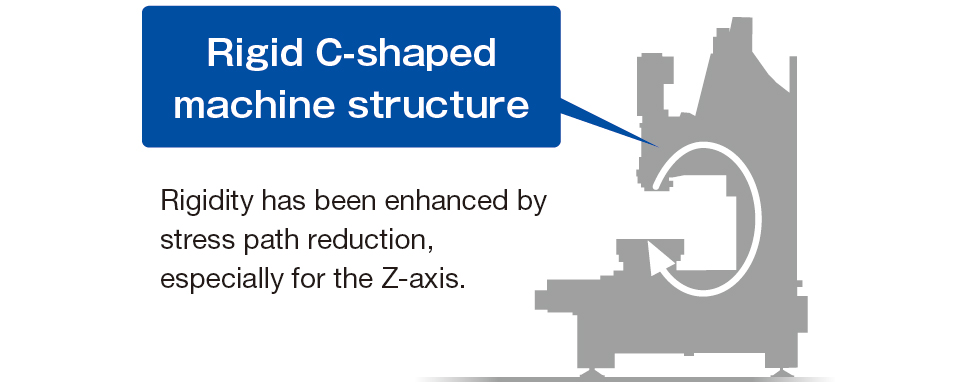

Highly rigid structure
Based on accumulated analysis technology data, the machine uses a structure that effectively further improves its rigidity.

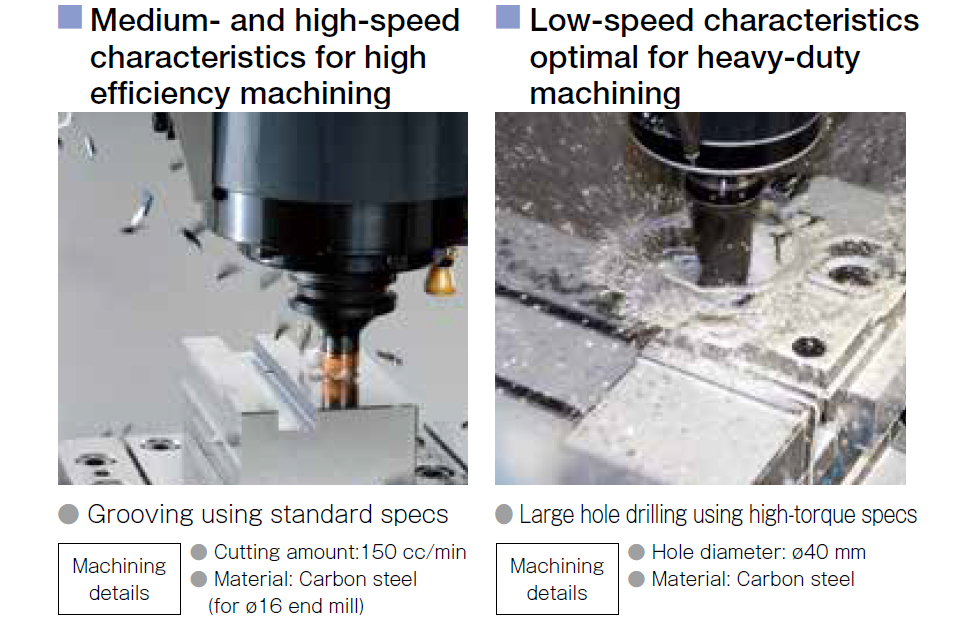

High-power spindlemotor
Spindle motor torque values
| Standard specifications |
|---|
|
| High-torque specs (Optional) |
|---|
|

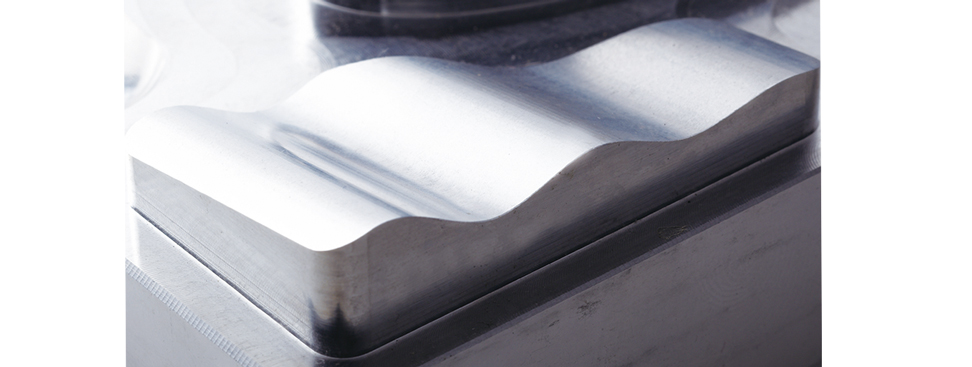

High-speed three-dimensional machining
In addition to the high-speed spindle specifications, high-speed and highly accurate three-dimensional machining has been achieved by Brother’s original three-dimensional machining control equipped with a 200-block look-ahead function and smooth path offset function.
| High-speed spindle specs.(Optional) |
|---|
|
| Look-ahead function |
|---|
|

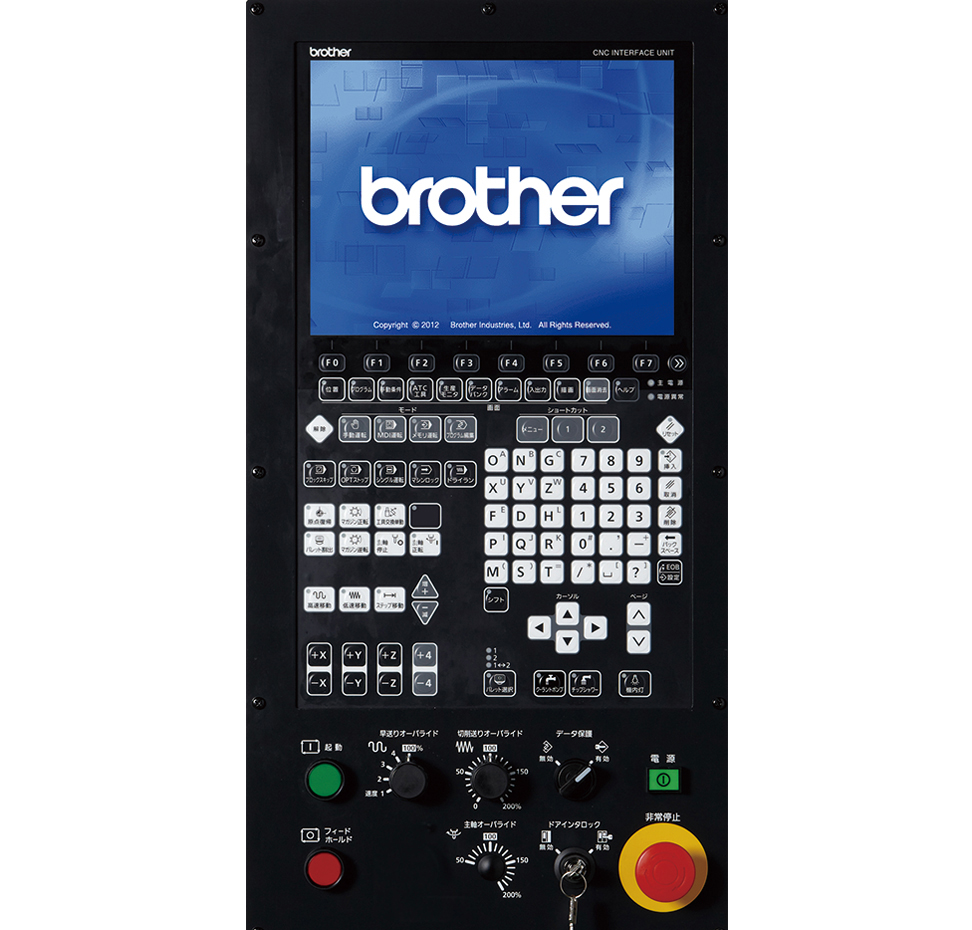

Operability and Reliability
Functions of Brother's original usability-focused controller "CNC-C00 Series" have been further enhanced to make it more user-friendly.
Operability
Equipped with tool monitoring functions ・ATC monitoring ・Waveform output to memory card ・Simple setting of high accuracy mode ・PLC function
Network function
Reliability has been improved by implementing various improvements to prevent accumulation of chips and entry of coolant mist that can cause machine stoppage.
