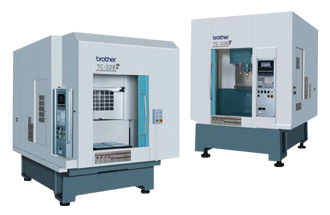

High-performance column traverse machine with
leading edge #30 machining capabilities and 40-tool
storage capacity to achieve high productivity

Recommended machining

  • Automobile
  • General
Machine specifications
item TC-32BN QT TC-32BN FT
12,000min-1
specifications
16,000min-1
specifications
12,000min-1
specifications
16,000min-1
specifications
CNC unit model CNC-B00 CNC-B00
Travels X axis
[mm(inch)]
550 (21.7) 550 (21.7)
Y axis
[mm(inch)]
400 (15.7) 400 (15.7)
Z axis
[mm(inch)]
415 (16.3) 415 (16.3)
Distance between table top spindle nose end[mm(inch)] 645 (25.4) 645 (25.4) (standard),
865 (34.1) (low)
Table Work area size
[mm(inch)]
600 x 425 (23.6 x 16.7)
(one side)
800 x 400 (31.5 x 15.7)
Max. loading capacity (uniform load)
[kg(lbs)]
200 (441) (one side) 600 (1323)
Max. turning diameter
[mm(inch)]
1,200 (47.2) -
Table positioning time
[sec.]
3.4/180° -
Table chage repeatability
[mm(inch)]
0.01 (0.0004) (table center) -
Spindle Spindle speed
[min-1]
12 - 12,000 16 - 16,000 12 - 12,000 16 - 16,000
Speed during tapping
[min-1]
MAX.8,000min MAX.8,000min
Tapered hole 7/24 tapered #30*9
Feed rate Rapid traverse rate
X x Y x Z axes
[m(inch)/min]
70 x 70 x 70 (2,756 x 2,756 x 2,756)
Cutting traverse rate
[mm(inch)/min]
1 - 20,000 (0.04 - 787.4) 1 - 20,000 (0.04 - 787.4)
ATC unit Tool shank type MAS-BT30*9
Pull stud type*8 MAS-P30T-2 *9
Tool storage capacity*1
[pcs.]
26(+1)/40(+1)
Max. tool diameter*2
[mm(inch)]
0 - 30 (0 - 1.2) / D46 (1.8) ,
30 - 200 (1.2 - 7.9) / D55 (2.2) (Large tool D125 (4.9))
Max. tool length
[mm(inch)]
200 (7.9) 200 (7.9)
Max. tool weight*3[kg(lbs)] 3.5 (7.7) 3.5 (7.7)
Tool selection Double arm method (random shortcut)
Tool change Tool To Tool:0.9(BT)*10
Chip To Chip:2.0(BT)*10
Electric motor Main spindle motor (10 min / continuous)*4
[kW]
11/ 6 10/ 7.3 11/ 6 10/ 7.3
Feed spindle motor
[kW]
1.3 (X, Y, Z) 1.3 (X, Y, Z)
Power source Power supply AC 3, 50 / 60Hz 1Hz
Power capacity*5
[kVA]
16 (Max. 32) 18 (Max. 37) 16 (Max. 32) 18 (Max. 37)
Air supply Working air pressure 0.4MPa - 0.6MPa 0.4MPa - 0.6MPa
Required flow*6 120 L/min (at atmospheric pressure)
Machining dimensions Machine height
[mm(inch)]
2,360 (92.9) 2,360 (92.9)
Required floor space (with control unit door open)[mm(inch)] 1,890 x 3,669 (74.4 x 144.4) 1,890 x 3,103 (74.4 x 122.2)
Machine weight (including control unit splash guard)[kg(lbs)] 4,600 (10,143) 4,400 (9,702)
Accuracy*5 Positioning accuracy
[mm(inch)]
0.005 / 300 (0.0002 / 11.8) 0.005 / 300 (0.0002 / 11.8)
Repeatability
[mm(inch)]
0.003 ( 0.00012) 0.003 ( 0.00012)
  • *1   When all tools are small tools (D55mm or less).
  • *2   The tool storage capacity, tool change time, etc., will vary when using large tools. The tool change time varies depending on the spindle type.
  • *3   Actual tool weight varies according to the configuration and center of gravity; The figures shown here are for reference only.
  • *4   Spindle motor output differs depending on the spindle speed.
  • *5   These include 0.9 KVA for chip conveyor and 4.2 KVA for high-pressure coolant.
  • *6   The required flow rate listed is the total flow rate when using the spindle air blast and coolant valve.
  • *7   Measured in compliance with JIS B6201-1987.
  • *8   Brother spec. is applied to pull stud for CTS.
  • *9   Please contact Brother for details of HSK and NC5 types.
  • *10 This is value of BT spec.

To the top on this page

NC Unit specification
Model CNC-B00
Control axes 7 axes ( X, Y, Z, 4 additional axes)
Simultaneously controlled axes Positioning 5 axes ( X, Y, Z, A, B)
Interpolation
  • Linear : 4 axes ( X, Y, Z, one additional axis)
  • Circular : 2 axes
  • Helical/ conical interpolation : 3 axes ( X, Y, Z) optional
Least input increment 0.001 mm, 0.0001 inch, 0.001 deg.
Max. programmable dimension 9999.999mm 999.9999inch
Display 12.1-inch color LCD
Program capacity Approx. 5,000 m (Approx. 2 Mbytes)
External communication USB Interface, RS232C 1ch(9Pin), Ethernet
No.of registrable programs 1,024
Program format NC language, conversation (changed by parameter), conversion from conversation program to NC language program available
NC function
  • Absolute / incremental
  • Inch / metric
  • Corner C / Corner R
  • Coordinate rotation
  • Synchronized tap
  • Coordinate system setting
  • Dry run
  • Restart
  • Backlash compensation
  • Pitch error compensation
  • Rapid traverse override
  • Cutting feed override
  • Alarm history
  • Status log
  • Machine lock
  • Computer remote
  • High-accuracy mode A
  • Tool length measurement
  • Tool life management / spare tool
  • Background editing
  • Graphic display
  • Subprogram
  • Expanded workpiece coordinate system (NC)
  • Helical / conical interpolation (optional)
  • Scaling(NC)
  • Mirror image(NC)
  • Menu programming (NC)
  • Program compensation input (NC)
  • Tool length compensation (NC)
  • Tool diameter compensation (NC)
  • Operation program (conv.)
  • Schedule program (conv.)
  • Automatic tool selection (conv.)
  • Automatic cutting condition setting (conv.)
  • Automatic tool length compensation setting (conv.)
  • Automatic tool diameter compensation setting (conv.)
  • Automatic calculation of unknown number input (conv.)
  • Machining order control(conv.)
  • Macro function (system variables) (NC)
  • Automatic power off
  • Servomotor off standby mode
  • Chip shower off delay
  • Automatic coolant off
  • Automatic work light off
  • Local coordinate system (NC)
  • One-way positioning(NC)
  • Operation in tape mode(NC)
  • Automatic heat expansion compensation system
  • * Functions with (NC) and (conv.) are available only for NC language programming and conversational programming respectively.
