M300X3 / M200X3

SPEEDIO NEW

M300X3 / M200X3

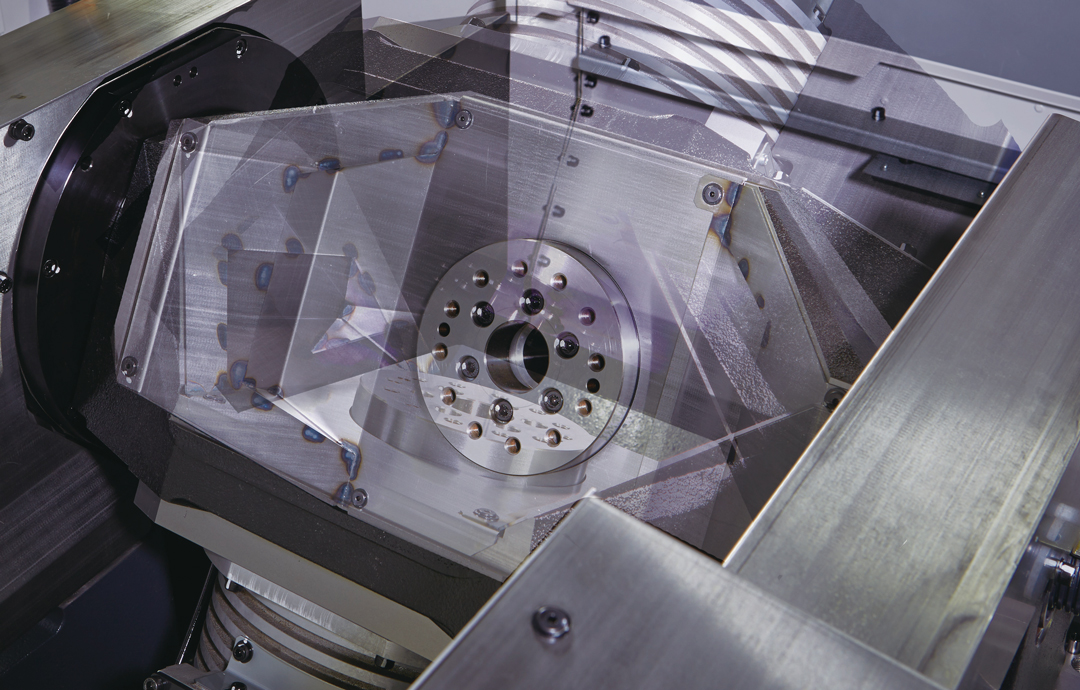

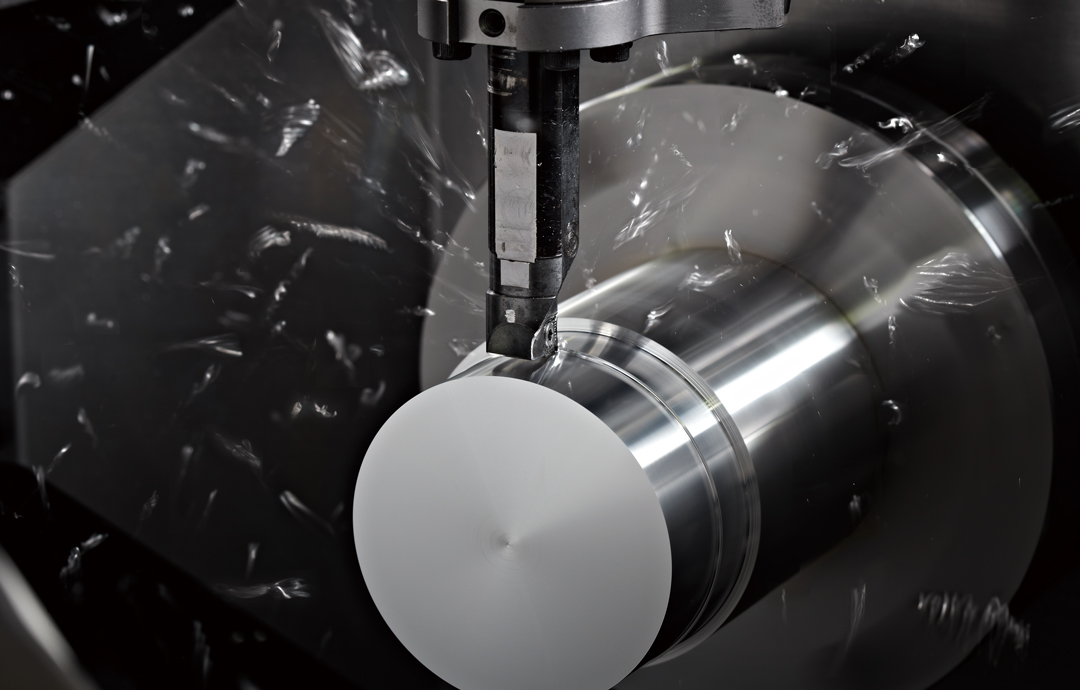

The compact multi-tasking machines, equipped with turning and tilt axes, enable turning and machining processes through one-time chucking.Two new models have been added that can handle larger workpieces and with an option to install a manpower reduction unit.

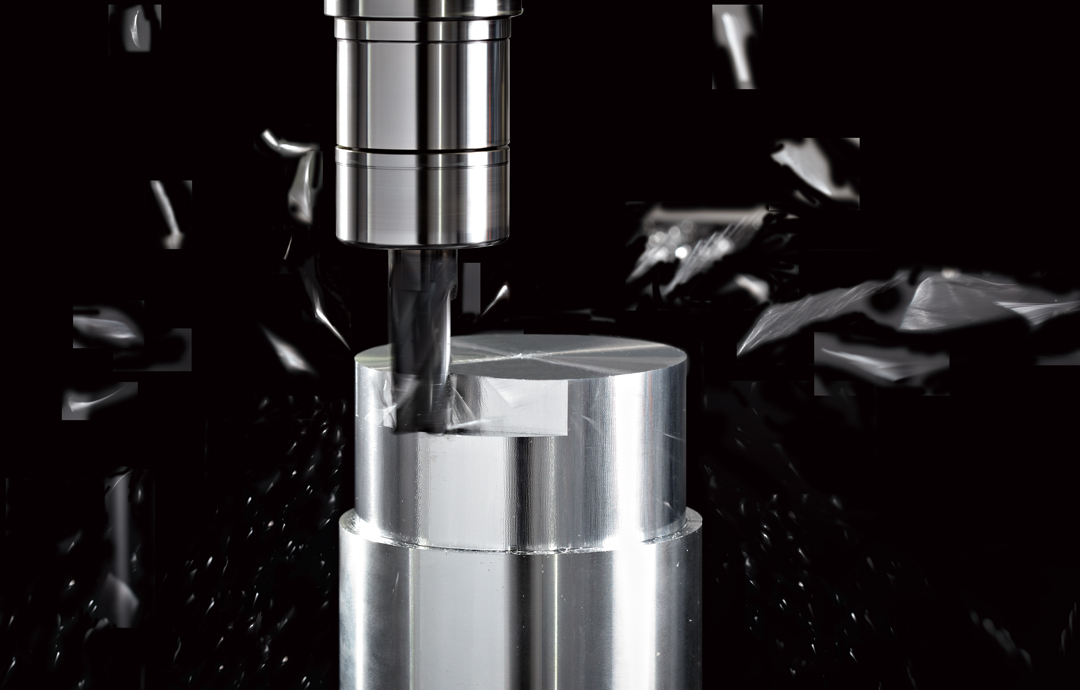

Recommended machining

Machine specifications
Item			M300X3 *8	M200X3 *8
CNC unit			CNC-C00
Travels	X axis [mm (inch)]		300 (11.8)	200 (7.9)
	Y axis [mm (inch)]		440 (17.3)	440 (17.3)
	Z axis [mm (inch)]		305 (12.0)	305 (12.0)
	A axis [deg.]		120 - -30	120 - -30
	C axis [deg.]		360	360
Table	Work area size [mm (inch)]		Φ170 (Φ6.7)	Φ140 (Φ5.5)
	Shape of table top		In compliance with table nose No.5 of ISO702-4 (JISB6109-2)
	Max.loading capacity (uniform load) [kg (lbs)]		Table side 75 (165.3) / Tail side 11 (24.3)	Table side 40 (88.2) / Tail side 11 (24.3)
	Maximum table load inertia [kg･m2(lb･inch2)]		Table side 0.58 (1982) / Tail side 0.04 (137)	Table side 0.29 (991) / Tail side 0.04 (137)
Spindle	Spindle speed [min^-1]		10,000min^-1 specifications : 10 - 10,000 16,000min^-1 specifications : 16 - 16,000
	Speed during tapping [min^-1]		MAX. 6,000
	Tapered hole		7/24 tapered No.30
	BT dual contact system(BIG-PLUS)		Optional
	Coolant Through Spindle(CTS)		Optional
Turning spindle	Max. spindle speed [min-1]		1,500	2000
Feed rate	Rapid traverse rate (XYZ-area) [m/min (inch/min)]		50 x 50 x 50 (1,969 x 1,969 x 1,969)
	Cutting feed rate [mm/min (inch/min)]		X,Y,Z axis : 1 - 30,000 (0.04 - 1,181)^*7
	Indexing feedrate (A and C) [min-1]		A axis: 50, C axis: 200	A axis: 60, C axis: 200
ATC unit	Tool shank type		MAS-BT30
	Pull stad type^*4		MAS-P30T-2
	Tool storage capacity [pcs.]		22
	Max. tool length [mm (inch)]		200 (7.9)
	Max. tool diameter [mm (inch)]		80 (3.1)
	Max. tool weight^*1 [kg (lbs)]		3 (6.6)
	Tool selection method		Random shortcut method
Tool change time^*5	Tool To Tool [sec.]		0.8	0.8
Tool change time^*5	Chip To Chip [sec.]		1.6	1.5
Electric motor	Main spindle motor (10 min/continuous) [kW]^*2		10,000min^-1 specifications : 10.1/7.0 16,000min^-1 specifications : 7.4/5.1
	Axis feed motor [kW]		X,Y axis 1.0, Z axis 1.8, A axis 1.35	X,Y axis 1.0, Z axis 1.8, A axis 0.8
	Turning spindle motor [kW]		4.6	3.6
Power source	Power supply		AC200V±10%、50/60Hz±1Hz
	Power capacity (continuous) [kVA]		10,000min^-1 specifications : 9.5 16,000min^-1 specifications : 9.5
	Air supply	Regular air pressure [MPa]	0.4 - 0.6 (recommended value : 0.5MPa)^*6
	Air supply	Required flow [L/min]	165
Machine dimensions	Height [mm (inch)]		2,653 (104.4)	2,603 (102.5)
	Required floor space (with control unit door open) [mm (inch)]		1,520 X 3,862 (59.8 X 152.0)	1,280 X 3,862 (50.4 X 152.0)
	Weight [kg (lbs)]		2,880 (6,349)	2,750 (6,063) [3,050 (6,724) with BV7-870]
Accuracy^*3	Accuracy of bidirectional axis positioning (ISO230-2:2006) [mm (inch)]		0.006 - 0.020 (0.00024 - 0.00079) [X,Y,Z] 28 sec or less [A,C]
Accuracy^*3	Repeatability of bidirectional axis positioning (ISO230-2:2006) [mm (inch)]		Less than 0.004 (0.00016) [X,Y,Z] 16 sec or less [A,C]
Standard accessories			Instruction Manual (1 set), anchor bolts (4 pcs.), leveling bolts (4 pcs.)

*1 The maximum tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
*2 Spindle motor output differs depending on the spindle speed.
*3 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
*4 Brother specications apply to the pull studs for CTS.
*5 Measured in compliance with JIS B6336-9 and MAS011-1987.
*6 Regular air pressure varies depending on the machine specications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
*7 When high accuracy mode B is used (When not used, 1 ~ 10,000 mm/min for X/Y axes and 1 ~ 20,000 mm/min for Z axis)
*8 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.

To the top on this page

NC Unit specifications
CNC model		CNC-C00
Control axes		5axes (X,Y,Z,A,C)
Simultaneously controlled axes	Positioning	5axes (X,Y,Z,A,C)
Simultaneously controlled axes	Interpolation	Linear : 4 axes (X, Y, Z, one additional axis) Circular : 2 axes Helical/conical : 3 axes(X,Y,Z)
Least input increment		0.001mm, 0.0001inch, 0.001 deg.
Max.programmable dimension		±9999.999mm, ±999.9999inch
Display		12.1-inch color LCD
Memory capacity		Approx.100 Mbytes (Total capacity of program and data bank)
External communication		USB memory interface, Ethernet, RS232C 1ch
No.of registrable programs		4,000 (Total capacity of program and data bank)
Program format		NC language^*1
Standard NC functions		Absolute / incremental Inch / metric Corner C / Corner R Rotational transformation Synchronized tap Coordinate system setting Dry run Restart Backlash compensation Rapid traverse override Cutting feed override Alarm history(1,000 pieces) Startus log Machine lock Computer remote Built-in PLC Motor insulation resistance measurement Operation log High accuracy mode AIII Tool length measurement Tool life management / spare tool Background editing Graphic display Subprogram Herical / conical interpolation Tool washing lter with lter clogging detection Automatic power off (energy saving function) Servomotor off standby mode (energy saving function) Chip shower off delay Automatic coolant off (energy saving function) Servomotor off standby mode (energy saving function) Chip shower off delay Automatic coolant off (energy saving function) Memory expansion (Approx. 500 Mbytes) High-speed processing 2 Rotary fixture offset Involute interpolation High accuracy mode BⅡ (look-ahead 200 blocks, smooth path offset) Automatic work light off (energy saving function) Heat expansion compensation systemII(X,Y,Z axes) Tap return function Automatic workpiece measurement^1 Waveform display Operation level External input signal key High accuracy mode BII (look-ahead 30 blocks) Waveform output to memory card Screen shot Auto notication Inverse time feed Spindle load monitoring function ATC monitoring function Expanded workpiece coordinate system Scaling Mirror image Menu programming Programmable data input Tool length compensation Cutter compensation Macro function Local coordinate system One-way positioning Operation in tape mode(Turning function) Constant peripheral speed control Feed per revolution control Tool position compensation XYZ Nose R compensation Thread cutting function Submicron command 3 Feature coordinate setting function Spindle override Interrupt type macro Turning function* Constant peripheral speed control Feed per revolution control Tool position compensation XYZ Nose R compensation Thread cutting function
Optional NC functions		Memory expansion (Approx. 500 Mbytes) Submicron command High accuracy mode BII (look-ahead 200 blocks, smooth path offset) High-speed processing^*3 Interrupt type macro Rotary fixture offset

* Ethernet is a trademark or registered trademark of XEROX in the United States
* Conversation language not available.
* 1 Measuring instrument needs to be prepared by users.
*1 Conversation language not available.
*2 Minute block processing time can be changed. As there are some restrictions, please contact your local distributor for details.
*3 When the submicron command is used, changing to the conversation program is disabled.
